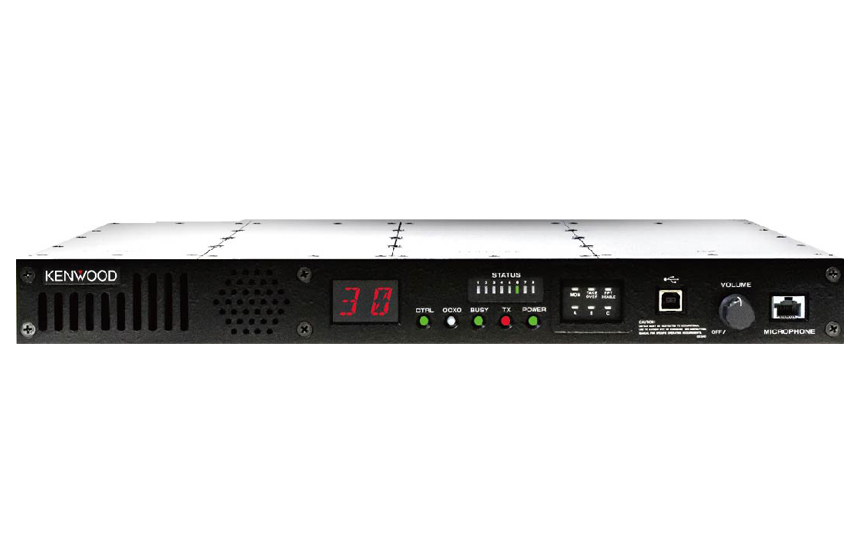

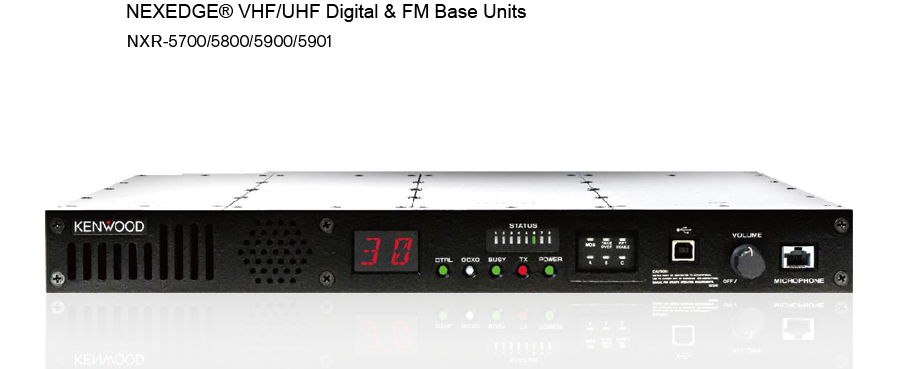

NXR-5700/5800/5900/5901
Key Features
-
NXR-5700/5800 25/5/0.5 W RF Output Power (100% Duty Cycle)
NXR-5900/5901 100mW/360mW RF Output Power (100% Duty Cycle)
Wideband Coverage
Two-Digit Numeric Display
LED Status Indicators
USB 2.0 Type-B Interface
IP LAN/WAN Connectivity
Ethernet Network Interface
6 Programmable Function Keys
0.3 W Front Panel Speaker
3 W External Speaker Audio
Volume Control
Program / Modem Interface
Remote Termination Interface
Programmable AUX I/O’s
DTMF Remote Control
Flash Firmware Upgrading
Remote System Firmware Updates
Telephone Interconnect Option (KTI-4M)
Digital – General
-
NXDN Digital Air Interface
AMBE+2TM VOCODER
6.25 & 12.5 kHz Bandwidth
Built-In 0.5 ppm TCXO
UID & GID Validation
NXDN Over-the-Air Alias
SNMP Protocol Ready
FER (Frame Error Rate) / RSSI Output
Digital – Trunking
-
Type-C NXDN Trunking Gen1/Gen2 Networks
Transmission Trunked Mode
Message Trunked Mode
Busy Call Queuing
Call Queue Pre-emption
Late Entry (UID & GID)
Control / Traffic Channel Switching
Digital – Trunking
Control Channel Rotation
Cross-Busy
Failsoft Mode
NXDN Traffic Channel Sharing
ESN Validation
Auto-Roaming / Registration
Wide Area All Group Call
Digital – Conventional Mode
-
Mixed FM / Digital Operation
Conventional IP Networks
Site Roaming Capability
Digital – Conventional Mode
Digital Voting
RF Link
FM Analog Mode
-
16 QT/DQTs Repeater Control Built-in
Hang Timer / Time Out Timer / CW ID
External FM Controller Interface
EIA Voter Tone Generation
External LTR® Controller Interface
External MPT1327 Controller Interface
