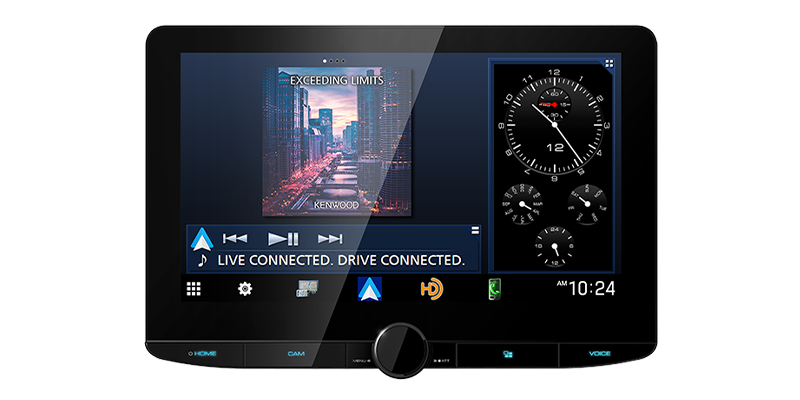

DMX1038SMonitor with Receiver
10.1" Digital Multimedia Receiver
Provides room for more information that is large and easy to see with just a glance.
Over 2x Area Size
of the 7 inch Display
10.1" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.

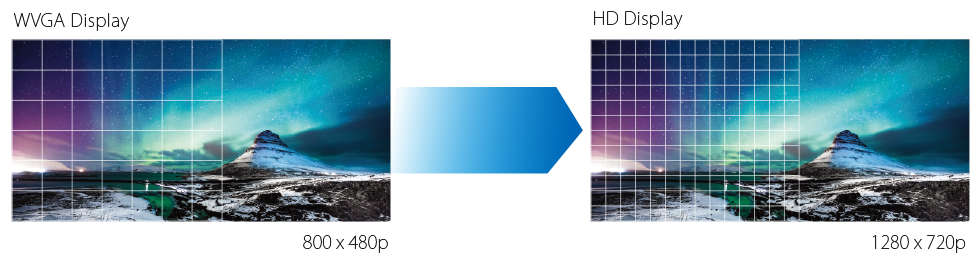

2.4x Resolution
of the WVGA Display
Optical Clear Adhesive (OCA) is added between the touch screen and the LCD to eliminate the air layer and suppress light reflection and glare. This feature enhances the contrast and brightness and maintains the visibility of the display in various environments.
Reflection of natural light
Light from backlight
Loss due to reflection
Loss due to reflection
Conventional Model
Reduced reflection
of natural light
Less loss
due to reflection
10.1" Model
The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with the protective film which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.
from Above 85°
from Left 85°
from Right 85°
from Below 85°
Fully adjustable display allows you to change the depth, height and angle for easy vehicle fitment.
Depth
2 steps
( 0 / 19mm )
Height
4 steps
( 0 / 15 / 30 / 45mm )
Tilt
-10° / +45°
Left / Right
3 steps
( -30 / 0 / +30mm )
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay
You can view and operate both Apple CarPlay and KENWOOD source in the same screen.
KENWOOD's split native screen area
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.
*Selected mobile phones only
You can view and operate both Android Auto and KENWOOD source in the same screen.
KENWOOD's split native screen area
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Smartphone devices.
*Selected smartphones only
Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 10.1" monitor. KCA-HD200 optional HDMI cable sold separately.

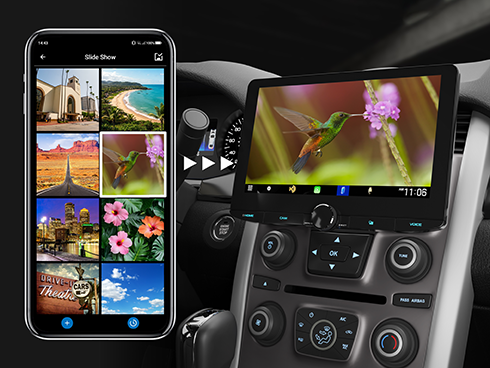

Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.

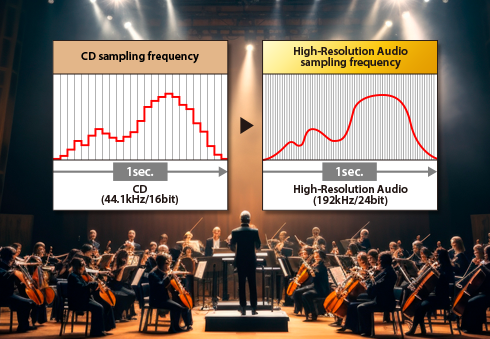

High-Resolution Audio is high-quality sound that far exceeds CD standards, and can play 192kHz / 24Bit sampling DSP. It captures and beautifully expresses details and nuances from the ultra-high to low frequencies.
*LDAC and LDAC logo are trademarks of Sony Corporation.
* “Hi-Res Audio” Logo and “Hi-Res Audio Wireless” Logo are used under license from Japan Audio Society.
You can fine-tune advanced sound properties to achieve professional audio sound quality in your vehicle. It allows you to set parameters of Q factor, slope, frequency and gain at 14 points separately (Common: 9 / Front: 2 / Rear: 2 / Subwoofer: 1). With adjustments such as high and low shelving filters, more realistic sound can be delivered.
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
You can play back from USB devices audio and video files compressed in various formats.
Enhance your vehicle integration with the iDatalink Maestro RR/RR2 (sold separately). This system allows you to retain your factory steering wheel audio controls, factory amplifier, and secondary displays. Additionally, it can display crucial vehicle information, such as performance data, climate controls, and battery voltage, when connected to compatible vehicles. For added convenience, radar detector information can be shown on the screen when paired with a compatible K40 radar detector system (sold separately). With the iDatalink Maestro RR2, you can also integrate an Escort radar detector system (sold separately) for a seamless driving experience.
*Available features vary by vehicle
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
The optional CMOS-740HD camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.
WVGA Camera
HD Camera
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately). Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).
RECOMMENDED COMBINATION
DASHCAM + HD REAR CAM + RIGHT CAM + LEFT CAM
RECOMMENDED COMBINATION
FRONT CAM + HD REAR CAM + RIGHT CAM + LEFT CAM
Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.
The 10.1" home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
SiriusXM 360L is the latest-generation audio platform from SiriusXM, combining satellite radio with internet streaming. SiriusXM 360L offers over 100 music channels, a vast library of on-demand content, and a live sports category where you can listen to game broadcasts and sporting events. It also features personalized "For You" recommendations, a Spotlight section, and easy access to related content.
*To enjoy 360L contents, it is necessary that the device is connected to the internet and H/U is connected with the device by Wi-Fi.
In addition, “360L IP Connection” in SETUP has to be set to ON.
*SiriusXM 360L requires a dedicated WiFi connection. Other Apps that require a WiFi connection may not work while SiriusXM 360L is in use.
HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.
USB Type-C cable and USB Type-A adapter are included to the set.Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A
This receiver unit can be operated using the optional remote control KCA-RCDV340.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select smartphone devices.
Optional camera connection method for up to 4 cameras in various configurations.
HD Front/Rear Camera (CMOS-740HD) can be connected for High Definition viewing.
Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.
USB Type-C cable and USB Type-A adapter are included to the set.Rapidly charge your compatible smartphone with the USB port, up to a maximum of 3.0A
You can adjust the level of each frequency band and create an original equalizer curve to match the in-car environment or your specific preference.
Virtually adjusts your listening position to the centre of the car.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
| Main Unit | Monitor Section |
Picture size | 10.1 inches(diagonal) wide |
|---|---|---|---|
| W x H | 223.7 x 125.8 (mm), 8-13/16 x 4-15/16 (inch) | ||
| Display system | LCD panel | ||
| Drive system | TFT active matrix system | ||
| Number of pixels | 2,764,800 | ||
| 1280H x 720V x RGB | |||
| Effective pixels | 99.99% | ||
| Pixel arrangement | RGB striped arrangement | ||
| Back lighting | LED | ||
| USB I/F Section |
Connector Type | Type-C | |
| USB Standard | USB2.0 High Speed | ||
| File System | FAT 16/32, exFAT, NTFS | ||
| Maximum Power Supply Current | DC5V=3.0A | ||
| D/A Converter | 24/32Bit | ||
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis | ||
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | ||
| Frequency response | |||
| 192k Sampling | 20 - 88,000 Hz | ||
| 96k Sampling | 20 - 44,000 Hz | ||
| 48k Sampling | 20 - 22,000 Hz | ||
| 44.1k Sampling | 20 - 20,000 Hz | ||
| Total harmonic distortion 1kHz | 0.01% | ||
| Signal to Noise ratio | 98.5dB | ||
| Dynamic range | 89dB | ||
| Wireless Mirroring Section |
Mode | Sink | |
| Copyright protection | HDCP2.2 | ||
| Touch Control | UIBC | ||
| Wi-Fi | IEEE Standard | 802.11 a/b/g/n/ac | |
| Frequency Range | Dual Band ( 2.4GHz / 5GHz ) | ||
| Channels | Auto(1-11ch) | ||
| Auto(149,153,157,161ch) | |||
| Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / | ||
| 11g: 54 Mbps / 11n: 300 Mbps / | |||
| 11ac: 867 Mbps | |||
| Bluetooth Section |
Technology | Bluetooth Ver5.2 | |
| Frequency | 2.402 – 2.480 GHz | ||
| Maximum Communication range | Line of sight approx.10m(32.8ft) | ||
| Audio Codec | SBC / AAC | ||
| Multi Profile Support | Multi Profile | ||
| Profile | HFP (V1.7) (Hands Free Profile) | ||
| SPP (Serial Port Profile) | |||
| A2DP (Advanced Audio Distribution Profile) | |||
| AVRCP (V1.6) (Audio/Video Remote Control Profile) | |||
| PBAP (Phonebook Access Profile) | |||
| HDMI | Connector Type | Type-D | |
| Input Resolution | VGA (640x480p @59.94Hz/60Hz) | ||
| 480p (720x480p @59.94Hz/60Hz) | |||
| 720p(1280x720p @59.94Hz/60Hz) | |||
| Input Audio Type | 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM | ||
| DSP Section |
Graphics equalizer | ||
| BAND | 13Band | ||
| frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | ||
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] | ||
| 2Way X'Over | |||
| HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] | ||
| SLOPE | -6/-12/-18/-24[dB/Oct.] | ||
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] | ||
| SLOPE | -6/-12/-18/-24[dB/Oct.] | ||
| 3Way X'Over | |||
| HIGH PASS FILTER frequency | 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k | ||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| Band PASS FILTER frequency | Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz] | ||
| 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through | |||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/Through[Hz] | ||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| Position | |||
| Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) | ||
| Gain | -8 to 0dB | ||
| Subwoofer Level | -50 to +10dB | ||
| Digital FM |
Frequency Range | 87.9MHz - 107.9MHz | |
| (Frequency step) | (200kHz) | ||
| Frequency Response | 20Hz - 20kHz | ||
| (±3.0 dB) | |||
| S/N | 80dB (STEREO) | ||
| Digital AM |
Frequency Range | 530kHz - 1700kHz | |
| (Frequency step) | (10kHz) | ||
| Frequency Response | 40Hz - 15kHz | ||
| (±3.0 dB) | |||
| S/N | 80dB (STEREO) | ||
| FM | Frequency Range | 87.9MHz - 107.9MHz | |
| (Frequency step) | (200kHz) | ||
| Usable sensitivity | 7.3dBf | ||
| S/N 30dB | 0.7μV/75Ω | ||
| Frequency response | 30Hz - 15kHz | ||
| (±3.0dB) | |||
| S/N (dB) | 70dB (MONO) | ||
| Selectivity | Over 80dB (±400kHz) | ||
| Stereo separation | 45dB (1kHz) | ||
| AM | Frequency Range | 530kHz - 1700kHz | |
| (Frequency step) | (10kHz) | ||
| Usable sensitivity | 30dBμ | ||
| Video | Color system of external video input | NTSC/PAL | |
| External video input level (RCA jacks) | 1 Vp-p / 75 Ohms | ||
| External video input level (Mini jacks) | - | ||
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms | ||
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms | ||
| Analog RGB input | - | ||
| Audio | Maximum Power Output (Front&Rear) | 50Wx4 | |
| Typical Power Output (Front&Rear) | 29W x 4 (4Ω,1kHz,10%THD) | ||
| Output frequency band | 20 - 88,000Hz | ||
| Preout level (V) | 4V / 10kOhms | ||
| Preout impedance (Ω) | =< 300 Ohms | ||
| Speaker Impedance (Ω) | 4-8 Ohms | ||
| External audio max input level (RCA jacks) | 2V / 22kOhms | ||
| Digital Audio Out | Connector Type | - | Output frequency | - |
| - | |||
| General | General | Operating voltage | 12V DC Car Battery |
| Set | Weight | 2.5Kg | |
| 5.6lb | |||
| Chassis | Dimensions WxHxD | 178mm x 50mm x 158mm | |
| 7 x 2 x 6-1/4 inch | |||
| Weight | 1.3Kg | ||
| 2.9lb | |||
| Monitor | Dimensions WxHxD | 262mm x 181mm x 52mm | |
| 10-5/16 x 7-1/8 x 2-1/16 inch | |||
| Weight | 1.1Kg | ||
| 2.4lb | |||
