Hi-Res Audio Certified.
17cm Component Speaker(Discontinued)

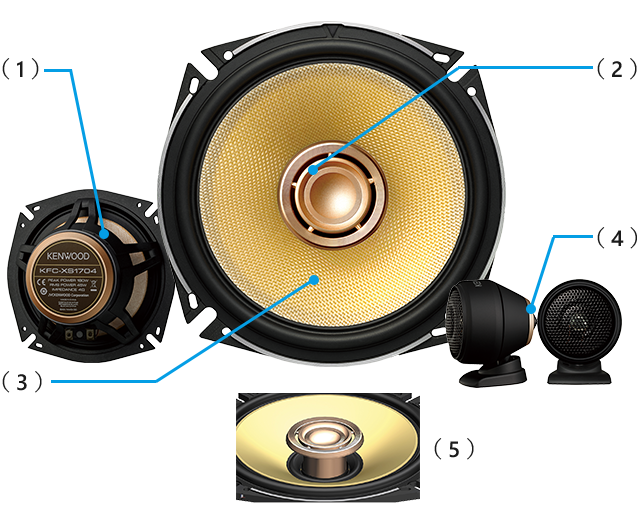

(1) Magnetic Circuit with Aluminum Ring
An aluminum ring minimizes unwanted distortion caused by electromagnetic induction of the voice coil, and it ensures a clear sound.
(2) High Rigid Glass Fiber Diaphragm
A glass-fiber is the material with high strength and high toughness. The woven glass-fiber diaphragm cleanly provides all the detail and impact you expect.
(3) Phase Correcting Diffuser
Its specially designed slits correct unwanted phase shift and deliver a more life-like sound experience while the concave shape on a center part of diffuser clearly reproduces a vocal sound image.
(4) 2way Tweeter
The tweeter consists of two tweeters. This unique structure delivers the fullness in a wide range while each tweeter reproduces a different frequency band.
(5) Special Phase Plug with Center Dip Design
-optimizes sound radiation resulting in natural and charming vocal.

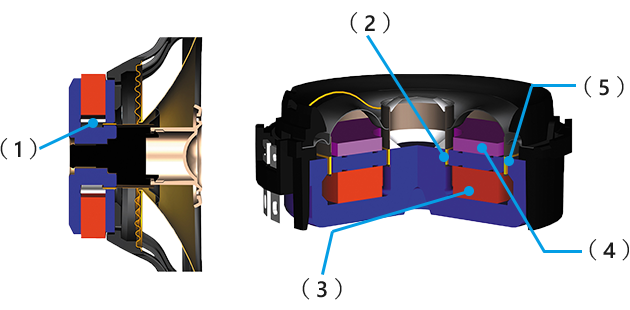

(1) Aluminium Short Ring
(2) Super Tweeter Voice Coil
(3) Main Magnet
(4) Sub Magnet
(5) Tweeter Voice Coil
| Speaker Tech-Spec | KFC-XS1704 |
|---|---|
| Peak Input Power | 180W |
| RMS Input Power | 45W |
| Size | 17cm |
| Tweeter Design | Soft + Titanium Dome |
| Tweeter Magnet Composition | Ferrite |
| Woofer Magnet Composition | Neodymium |
| Nominal Impedance | 4ohms |
| Frequency Response | 34Hz-56kHz (-10dB) |
| Sensitivity (dB/W at 1m) | 83dB |
| Mounting Depth | 57mm |
