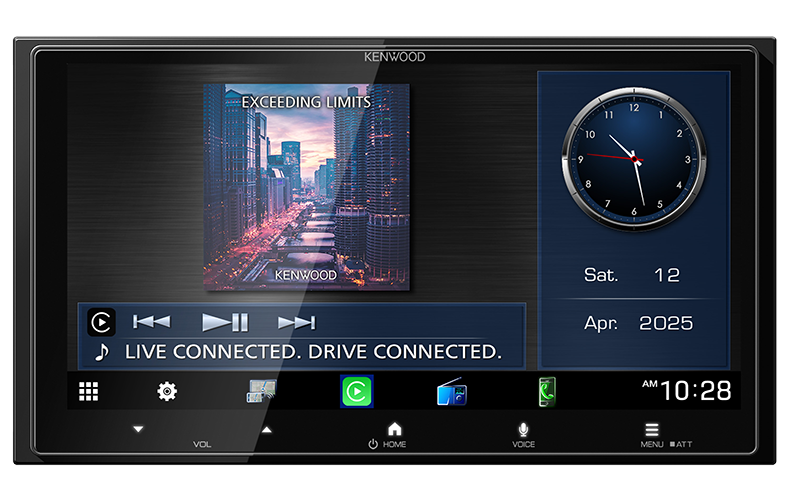

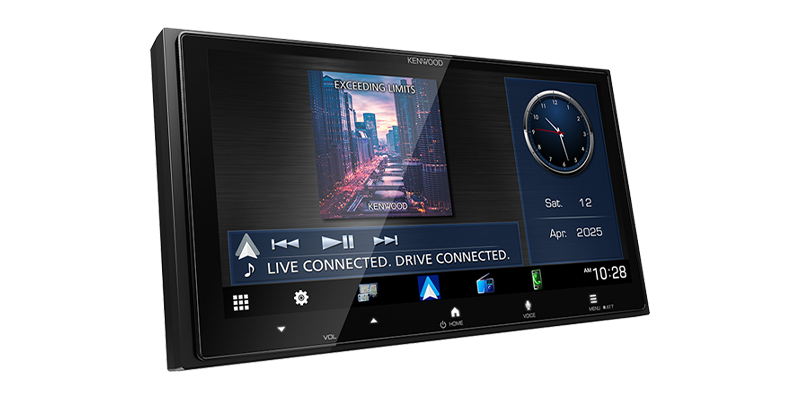

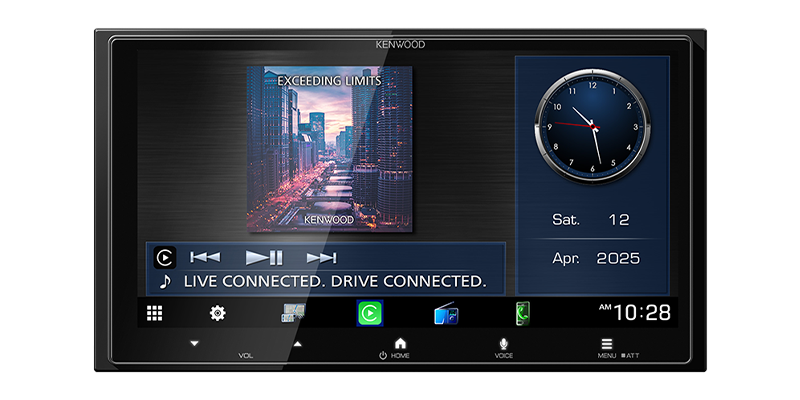

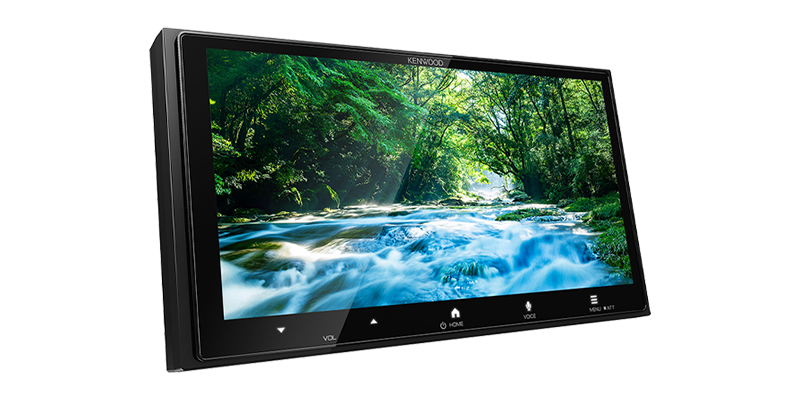

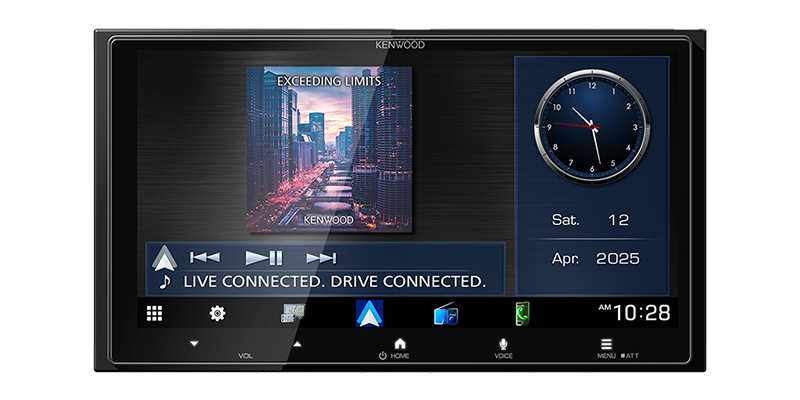

DMX7525SMonitor with Receiver
6.92" Digital Multimedia Receiver
×

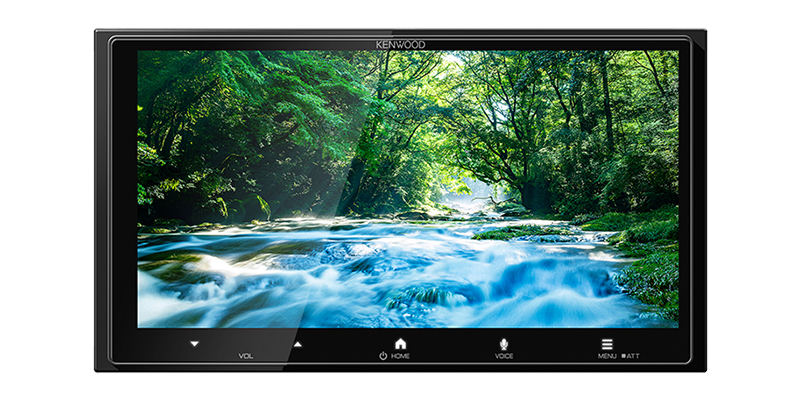

6.92" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.
2.4x Resolution
of the WVGA Display

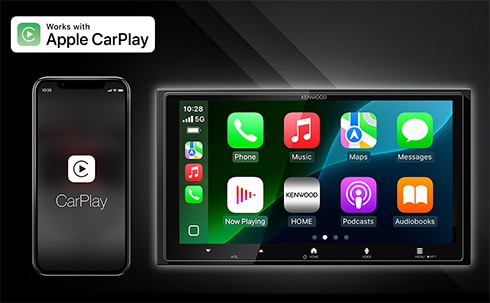

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.
*Selected mobile phones only
By installing the “CarbitLink-EasyConnection” app, your smartphones seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube, and Instagram.
*Selected smartphones only
Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 6.92" monitor. KCA-HD200 optional HDMI cable sold separately.
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
You can play back from USB devices audio and video files compressed in various formats.
Two camera inputs provide users the ability to add both a front and rear camera for enhanced driver safety and convenience. Built-in, adjustable parking guidelines further add to its effectiveness.
By installing a rear camera at the front of the vehicle and using the receiver's Mirror function, you can invert the image and use it as a front camera.
The optional CMOS-740HD camera can be connected to the receiver’s rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers.
WVGA Camera
HD Camera
The receivers can be installed in most Japanese and Korean vehicles easily.
Click here to learn more
Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.
*Compatibility depends on the smartphone.
This receiver unit can be operated using the optional remote control KCA-RCDV340.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
| Main Unit | Monitor Section |
Picture size | 6.92 inches(diagonal) |
|---|---|---|---|
| W x H | 156.48 (W) x 80.136 (H) mm | ||
| Display system | LCD PANEL | ||
| AHVA(advance hybrid view angle) | |||
| Drive system | TFT active matrix system | ||
| Number of pixels | 2,764,800 | ||
| 1280H x 720V x RGB | |||
| Pixel arrangement | RGB striped arrangement | ||
| Back lighting | LED | ||
| USB I/F Section |
Connector Type | Type-A | |
| USB Standard | USB2.0 High Speed | ||
| File System | FAT 16/32, exFAT, NTFS | ||
| Maximum Power Supply Current | DC5V=2.1A | ||
| D/A Converter | 24 Bit | ||
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC | ||
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | ||
| Frequency response | |||
| 192k Sampling | 20 - 20,000 Hz | ||
| 96k Sampling | 20 - 20,000 Hz | ||
| 48k Sampling | 20 - 20,000 Hz | ||
| 44.1k Sampling | 20 - 20,000 Hz | ||
| Total harmonic distortion 1kHz | Typ: 0.05% | ||
| Signal to Noise ratio | Typ: 78dB | ||
| Dynamic range | Typ: 89dB | ||
| Wi-Fi | IEEE Standard | 802.11 a/b/g/n/ac | |
| Frequency Range | Dual Band ( 2.4GHz / 5GHz ) | ||
| Channels | - | ||
| Auto(149,153,157,161ch) | |||
| Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / | ||
| 11g: 54 Mbps / 11n: 130 Mbps / | |||
| 11ac: 390 Mbps | |||
| Output Power 2.4GHz/SISO |
11b:15dBm+3/-2dBm/ | ||
| 11g:14dBm+3/-0dBm/ | |||
| 11n(20MHz):13dBm+4/-1dBm/ | |||
| Output Power 5GHz/SISO |
11a:12dBm+4/-2dBm/ | ||
| 11n(20MHz):12dBm±4dBm / 11n(40MHz):12dBm±4dBm / |
|||
| 11ac(20MHz):12dBm±4dBm / 11ac(40MHz):12dBm±4dBm / 11ac(80MHz):9dBm±3dBm/ |
|||
| Bluetooth Section |
Technology | Bluetooth Ver5.3 | |
| Frequency | 2.402-2.480 GHz | ||
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | ||
| Maximum Communication range | Line of sight approx.10m(32.8ft) | ||
| Audio Codec | SBC/AAC | ||
| Multi Profile Support | Support | ||
| Profile | Support HFP v1.7 | ||
| Support SPP v1.2 | |||
| Support A2DP 1.4 | |||
| Support AVRCP v1.6 | |||
| Support PBAP v1.2 | |||
| HDMI | Connector Type | Type-D | |
| Input Resolution | 640x480 60Hz 4:3 | ||
| 720x480 60Hz 4:3 | |||
| 720x480 60Hz 16:9 | |||
| 1280x720 60Hz 16:9 | |||
| Input Audio Type | 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM | ||
| DSP Section |
Graphics equalizer | ||
| BAND | 13Band | ||
| frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | ||
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB] | ||
| 2Way X'Over | |||
| HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] | ||
| SLOPE | -6/-12/-18/-24[dB/Oct.] | ||
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] | ||
| SLOPE | -6/-12/-18/-24[dB/Oct.] | ||
| 3Way X'Over | |||
| HIGH PASS FILTER frequency | Through/250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k | ||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| Band PASS FILTER frequency | Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz] | ||
| 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through | |||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/Through[Hz] | ||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| Position | |||
| Front / Rear /Subwoofer Delay | 0 - 6.1m (0.01m Step) | ||
| Gain | -8 to 0dB | ||
| Subwoofer Level | -50 to +10dB | ||
| FM | Frequency Range | 87.5～108.0(MHz) | |
| (Frequency step) | 50kHz | ||
| Usable sensitivity | Typ: 8dBf | ||
| S/N30dB | |||
| Frequency response | 100Hz - 10kHz | ||
| (±3.0dB) | |||
| S/N (dB) | Typ: 75dB | ||
| Stereo separation | Typ: 45dB | ||
| AM | Frequency Range | 531～1611(kHz) | |
| (Frequency step) | 9kHz | ||
| Usable sensitivity | Typ: 29dBu | ||
| Video | Color system of external video input | NTSC/PAL | |
| External video input level (RCA jacks) | Typ: 1 Vp-p / 75 Ohms | ||
| External video input level (Mini jacks) | Typ: 1 Vp-p / 75 Ohms | ||
| External audio max input level (RCA jacks) | - | ||
| External audio max input level (Mini jacks) | 1.1 VRMS / 10 kOhms | ||
| Video Input level (RCA jacks) | - | ||
| Video Output level (RCA jacks) | Typ: 100 IRE | ||
| Audio Output level (RCA jacks) | Typ: 3 V /10k ohms | ||
| Audio | Maximum Power Output (Front&Rear) | 50Wx4 | |
| Output frequency band | 20 - 20,000Hz | ||
| Preout level (V) | Typ: 3 V /10k ohms | ||
| Preout impedance (Ω) | =< 600 Ohms | ||
| Speaker Impedance (Ω) | 4-8 Ohms | ||
| General | Chassis | Dimensions WxHxD | 178mmx100mmx109mm |
| Weight | 1.14kg | ||
