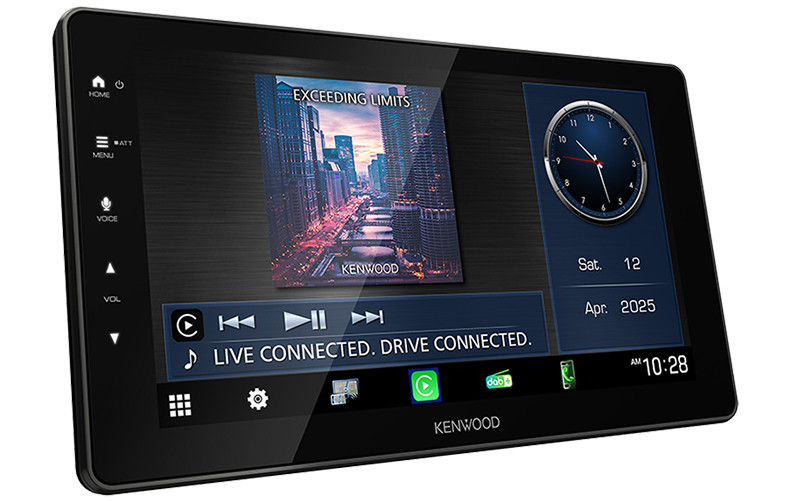

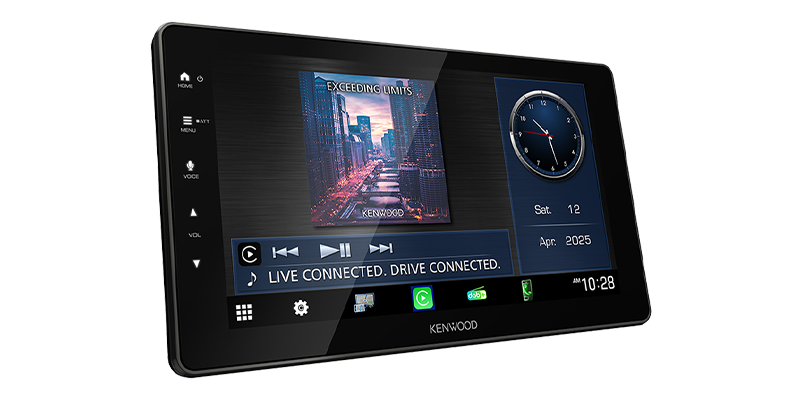

DMX7509XDSMonitor with Receiver
9" Digital Multimedia Receiver

  • 9" High Definition Monitor with Capacitive Touch Panel
  • Floating Panel Mechanism with 3-way Position Adjustment
  • Android Auto™ & Android Auto™ Wireless
  • Wired and Wireless Apple CarPlay
  • Wireless Mirroring for Smartphones
  • iDatalink Maestro Ready
  • 2 Camera Inputs
  • HD Rear Camera Ready
  • HDMI Input
  • Built-in DAB+ Digital Radio Tune, Bluetooth & Wi-Fi
  • 3 Preouts 3V

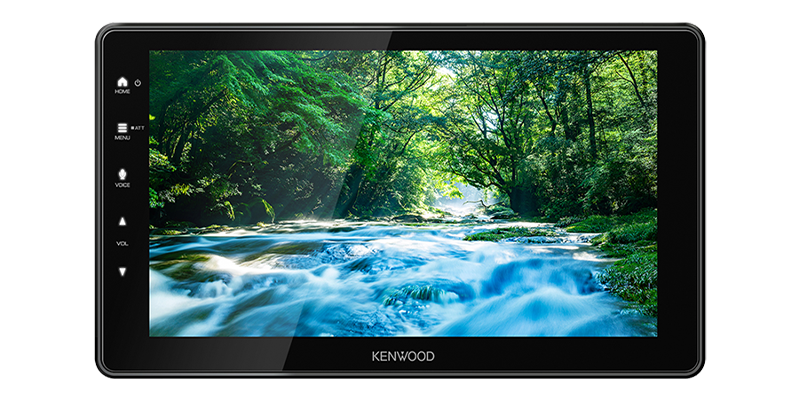

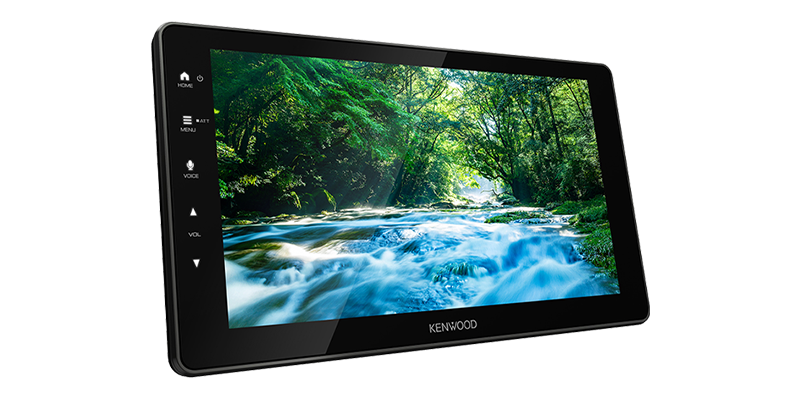

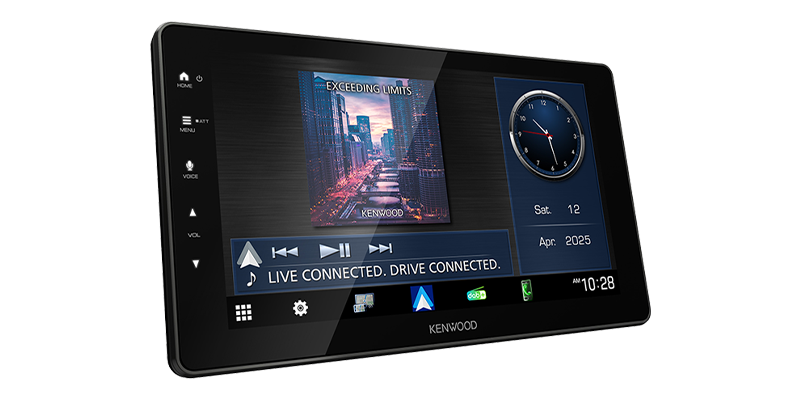

9" Large High Definition Display

HD 1280×720 DISPLAY

High Definition
— Overwhelming Power of Expression —

9" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.

2.4x Resolution
of the WVGA Display

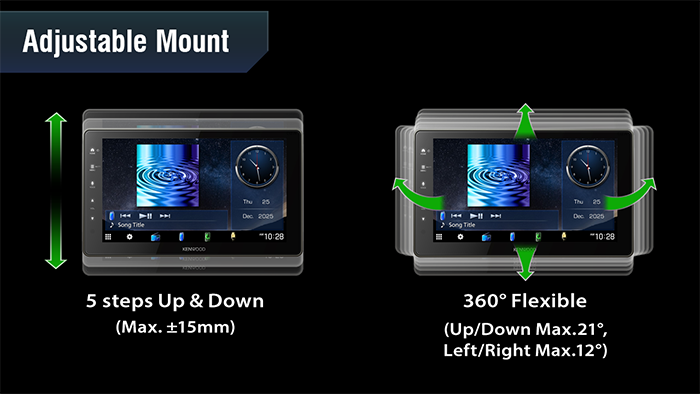

360°Adjustable Floating Mechanism

The fully adjustable display allows drivers to rotate and tilt the screen 360, offering easy angle adjustments with left / right and tilt motion for optimal viewing.

Smartphone Connectivity

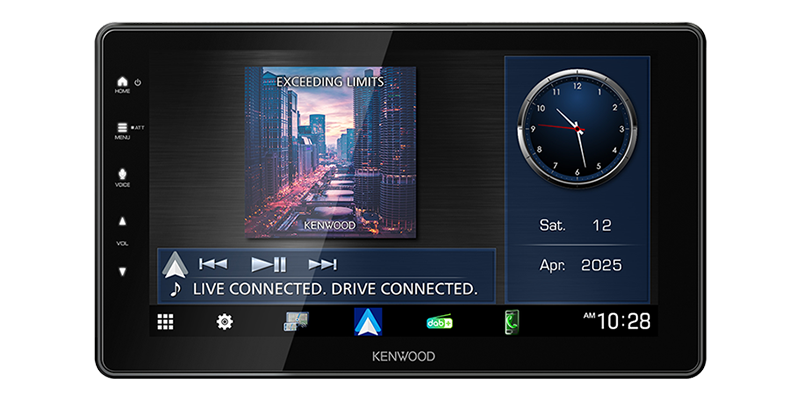

Apple CarPlay – Connect Wirelessly or via USB

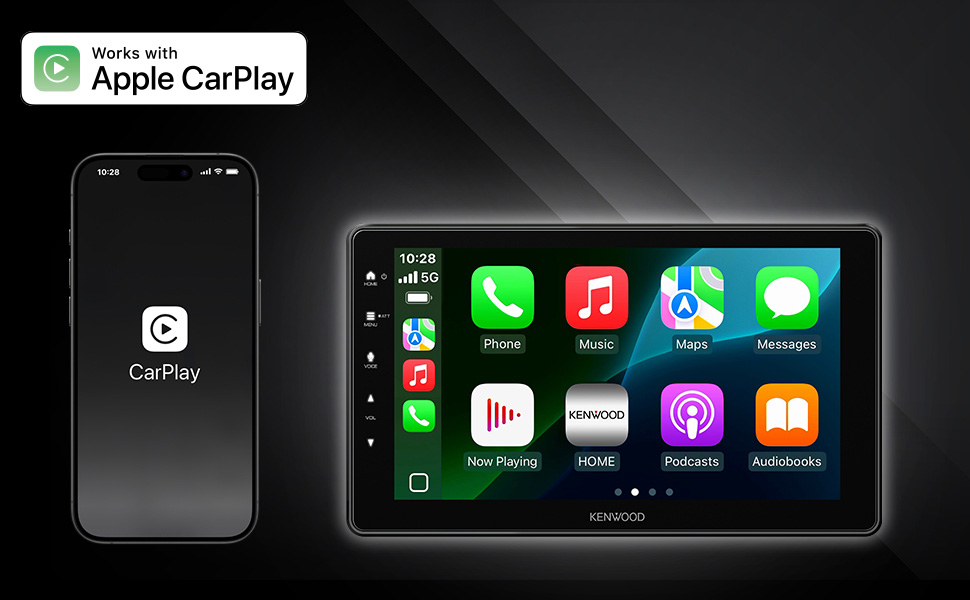

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

Works with Apple CarPlay

Android Auto ™ – Connect Wirelessly or via USB

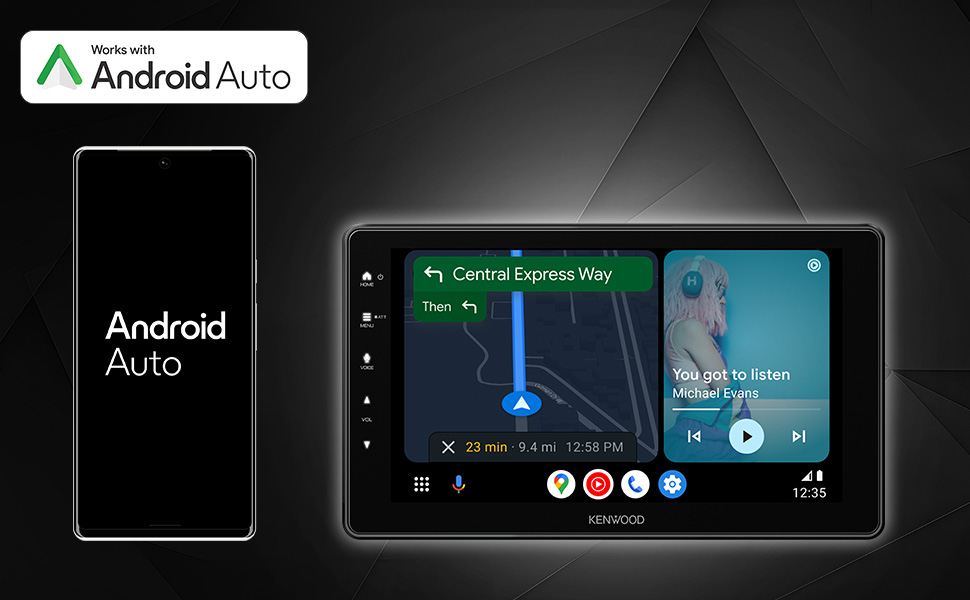

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.

*Selected mobile phones only

Works with Android Auto

Wireless Mirroring for Smartphones

By installing the “CarbitLink-EasyConnection” app, your smartphones seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube, and Instagram.

*Selected smartphones only

HDMI Mirroring for Smartphones

Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 9" monitor. KCA-HD200 optional HDMI cable sold separately.

The Best Audio Experience

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Playable Video & Audio Files

You can play back from USB devices audio and video files compressed in various formats.

Audio Format Video Format

Safe Driving

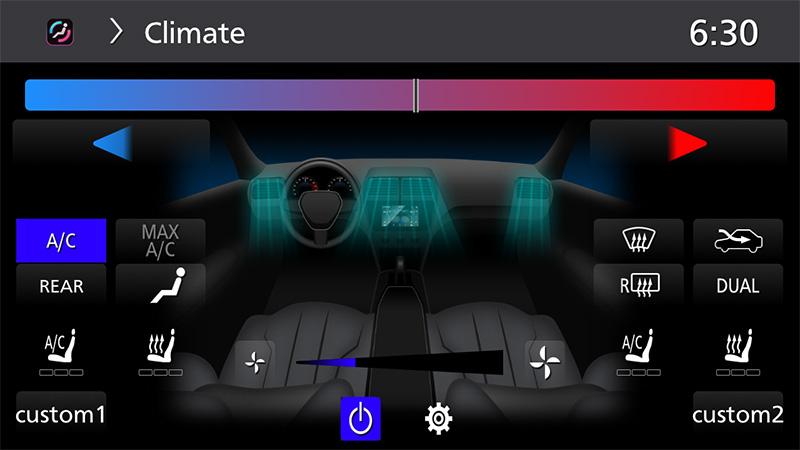

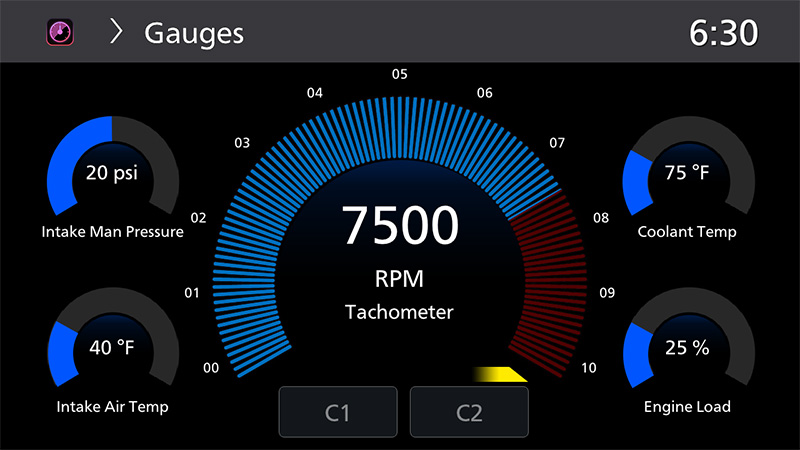

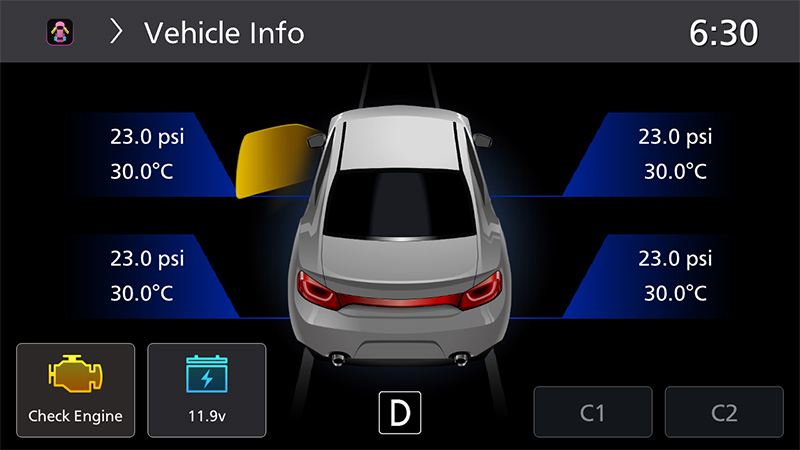

ENHANCED VEHICLE INTEGRATION

Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, these models feature expanded support when connected to the RR2.

*Available features vary by vehicle

i data link maestro

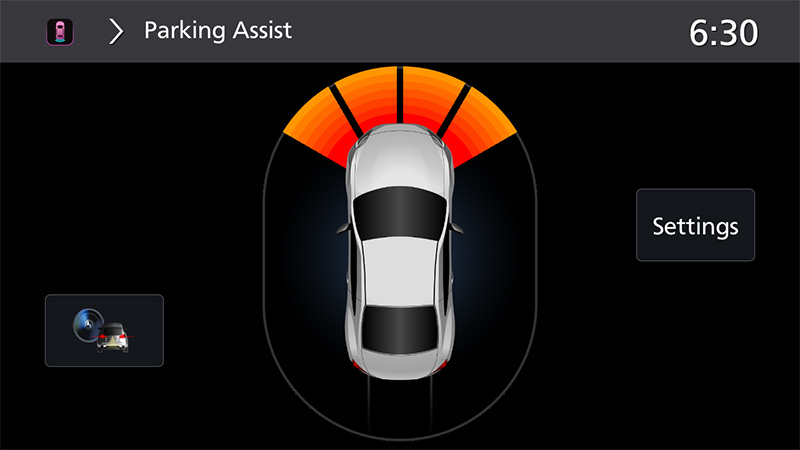

Dual Camera Inputs and Parking Guide Lines

Two camera inputs provide users the ability to add both a front and rear camera for enhanced driver safety and convenience. Built-in, adjustable parking guidelines further add to its effectiveness.
By installing a rear camera at the front of the vehicle and using the receiver's Mirror function, you can invert the image and use it as a front camera.

HD Rear Camera Input

The optional CMOS-740HD and CMOS-150HD cameras can be connected to the receiver’s rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers.

WVGA Camera

HD Camera

Additional Features

Built-in DAB+ Digital radio Tuner

Direct OEM Steering Remote Control

The receivers can be installed in most Japanese and Korean vehicles easily.
Click here to learn more

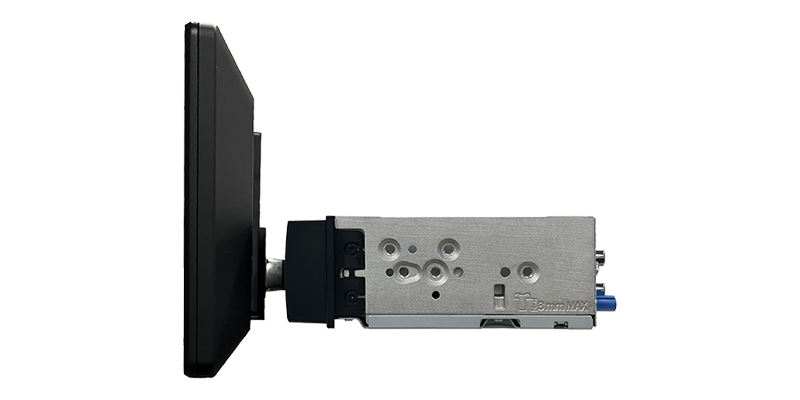

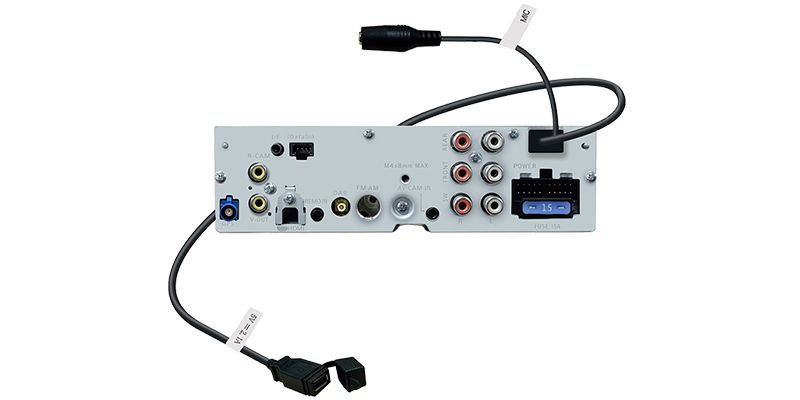

1DIN Chassis Design

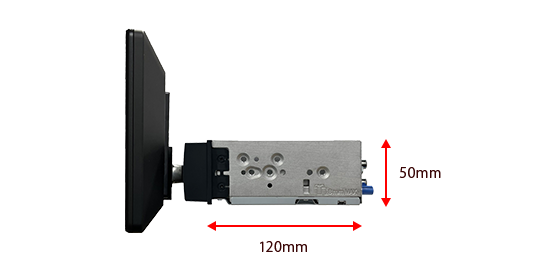

The reduced height of the chassis contributes to a weight reduction and facilitates easier installation.

High Current 2.1A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.

*Compatibility depends on the smartphone.

Remote Control (Optional)

This receiver unit can be operated using the optional remote control KCA-RCDV340.

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

« scroll
Main Unit Monitor
Section
Picture size 9 inches(diagonal)
W x H 198.91 (W) x 111.89 (H) mm
Display system LCD PANEL
FFS
Drive system TFT active matrix system
Number of pixels 2,764,800
1280H x RGB x 720V
Pixel arrangement RGB striped arrangement
Back lighting LED
USB I/F
Section
Connector Type Type-A
USB Standard USB2.0 High Speed
File System FAT 16/32, exFAT, NTFS
Maximum Power Supply Current DC5V=2.1A
D/A Converter 24 Bit
Audio Decoder MP3 / WMA / AAC / WAV / FLAC
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Frequency response
192k Sampling 20 - 20,000 Hz
96k Sampling 20 - 20,000 Hz
48k Sampling 20 - 20,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz Typ: 0.05%
Signal to Noise ratio Typ: 78dB
Dynamic range Typ: 89dB
Wi-Fi IEEE Standard 802.11 a/b/g/n/ac
Frequency Range Dual Band ( 2.4GHz / 5GHz )
Channels -
Auto(149,153,157,161ch)
Transfer rates (MAX) 11a: 54 Mbps / 11b: 11 Mbps /
11g: 54 Mbps / 11n: 130 Mbps /
11ac: 390 Mbps
Output Power
2.4GHz/SISO
11b:15dBm+3/-2dBm/
11g:14dBm+3/-0dBm/
11n(20MHz):13dBm+4/-1dBm/
Output Power
5GHz/SISO
11a:12dBm+4/-2dBm/
11n(20MHz):12dBm±4dBm /
11n(40MHz):12dBm±4dBm /
11ac(20MHz):12dBm±4dBm /
11ac(40MHz):12dBm±4dBm /
11ac(80MHz):9dBm±3dBm/
Bluetooth
Section
Technology Bluetooth Ver5.3
Frequency 2.402-2.480 GHz
RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC/AAC
Multi Profile Support Support
Profile Support HFP v1.7
Support SPP v1.2
Support A2DP 1.4
Support AVRCP v1.6
Support PBAP v1.2
HDMI Connector Type Type-D
Input Resolution 640x480 60Hz 4:3
720x480 60Hz 4:3
720x480 60Hz 16:9
1280x720 60Hz 16:9
Input Audio Type 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM
DSP
Section
Graphics equalizer
BAND 13Band
frequency (Hz) (BAND1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB]
2Way X'Over
HIGH PASS FILTER frequency Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
3Way X'Over
HIGH PASS FILTER frequency Through/250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
SLOPE -12/-18/-24[dB/Oct.]
Band PASS FILTER frequency Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
SLOPE -12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/Through[Hz]
SLOPE -12/-18/-24[dB/Oct.]
Position
Front / Rear /Subwoofer Delay 0 - 6.1m (0.01m Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
FM Frequency Range 87.5~108.0(MHz)
(Frequency step) 50kHz
Usable sensitivity Typ: 8dBf
S/N30dB
Frequency response 100Hz - 10kHz
(±3.0dB)
S/N (dB) Typ: 75dB
Stereo separation Typ: 45dB
AM Frequency Range 531~1701(kHz)
(Frequency step) 9kHz
Usable sensitivity Typ: 29dBu
DAB Frequency Range BAND III: 174.928MHz - 239.200MHz
Sensitivity Typ: -100dBu
S/N Typ: 78dB
DAB
Antenna
Connector
Connector type SMB
Output Voltage (11V-16V) 11.8-12.8V
(@ B+ Voltage=14.4V)
Maximum Current < 100mA
Video Color system of external video input NTSC/PAL
External video input level (RCA jacks) Typ: 1 Vp-p / 75 Ohms
External video input level (Mini jacks) Typ: 1 Vp-p / 75 Ohms
External audio max input level (RCA jacks) -
External audio max input level (Mini jacks) 1.1 VRMS / 10 kOhms
Video Input level (RCA jacks) -
Video Output level (RCA jacks) Typ: 100 IRE
Audio Output level (RCA jacks) Typ: 3 V /10k ohms
Audio Maximum Power Output (Front&Rear) 50Wx4
Output frequency band 20 - 20,000Hz
Preout level (V) Typ: 3 V /10k ohms
Preout impedance (Ω) =< 600 Ohms
Speaker Impedance (Ω) 4-8 Ohms
General Chassis Dimensions WxHxD 178mmx50mmx120mm
Weight 0.94kg
Monitor Dimensions WxHxD 240mm x 140mm x 31mm
Weight 0.66kg
Set Weight 1.6kg
