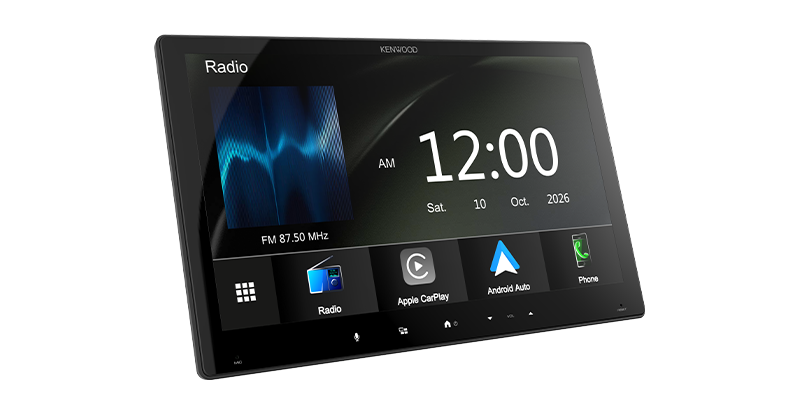

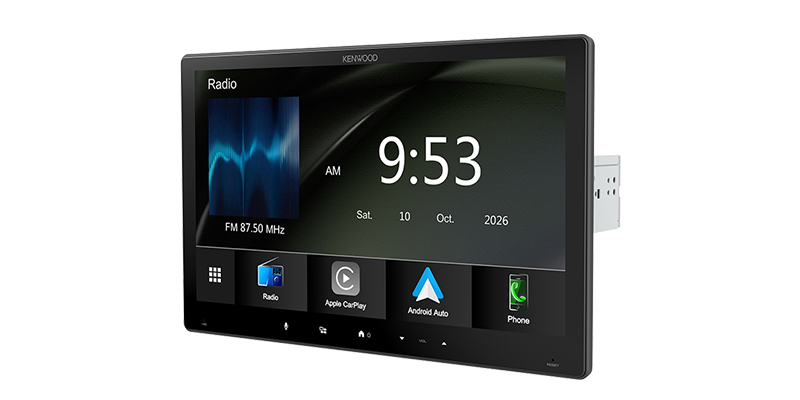

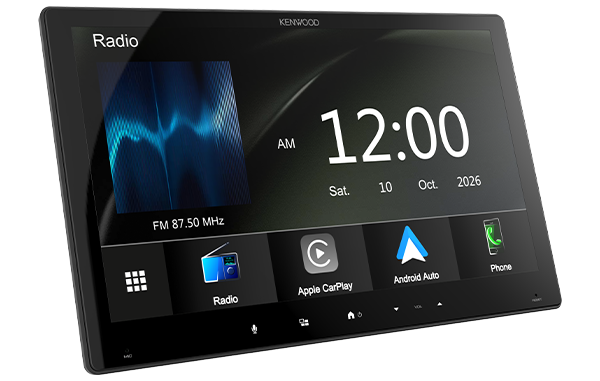

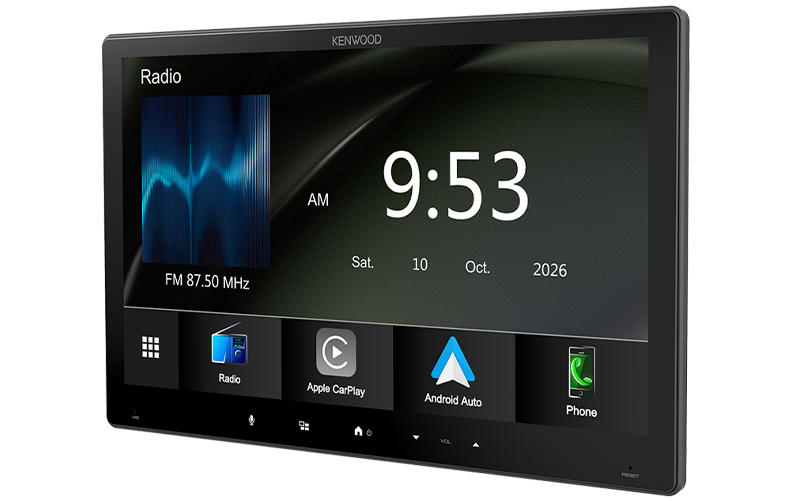

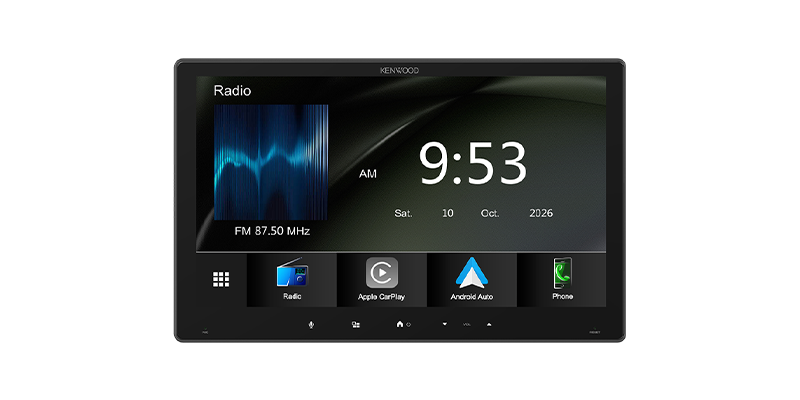

DMX7412XDSMonitor with Receiver
11.6" Digital Multimedia Receiver
×
The WXGA display reproduces approximately 2.3 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

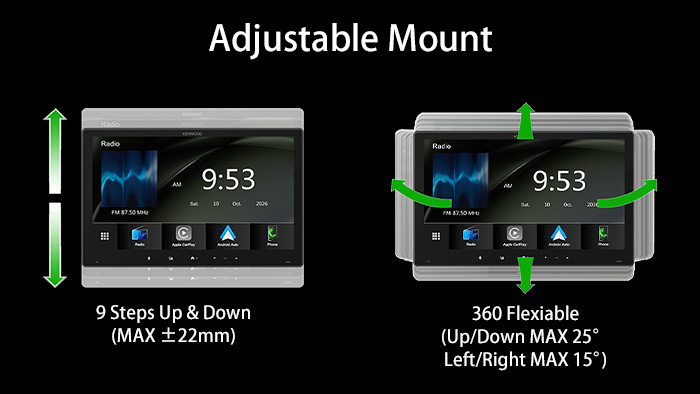

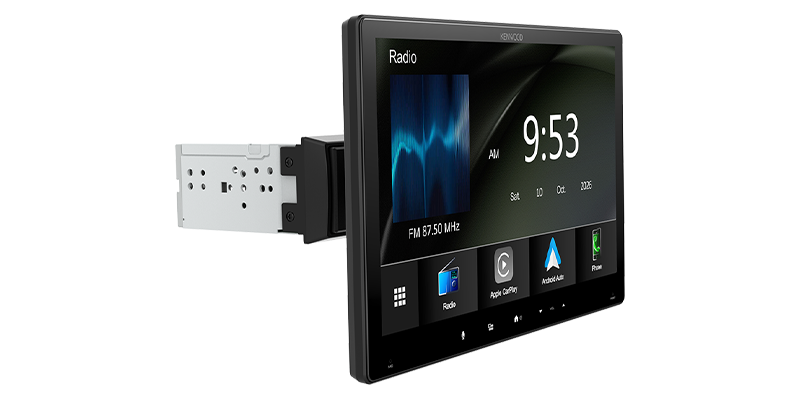

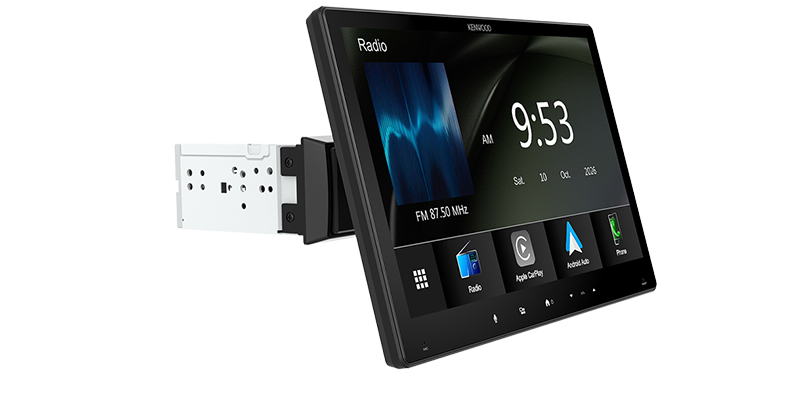

The fully adjustable display allows drivers to rotate and tilt the screen 360, offering easy angle adjustments with left / right and tilt motion for optimal viewing.

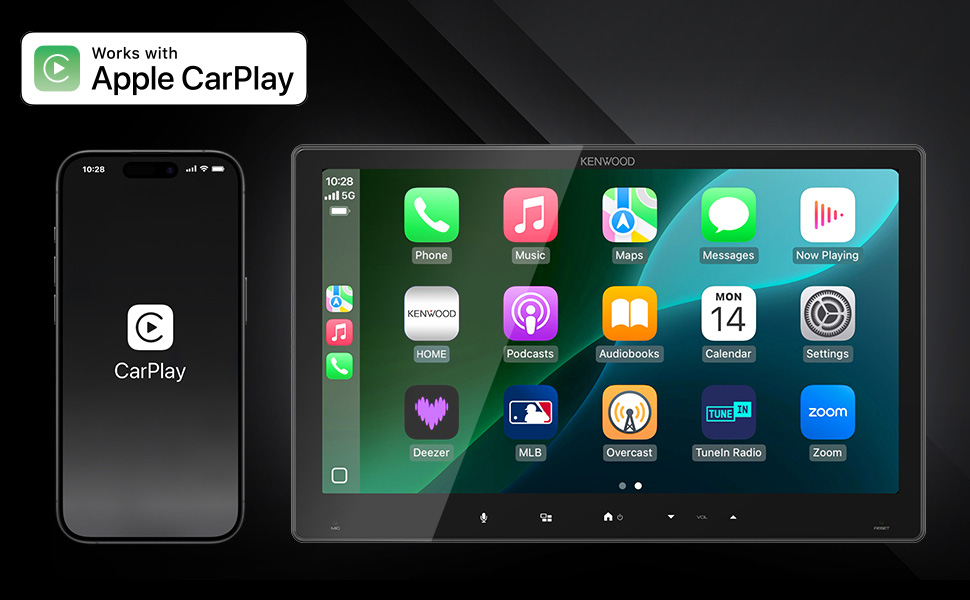

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

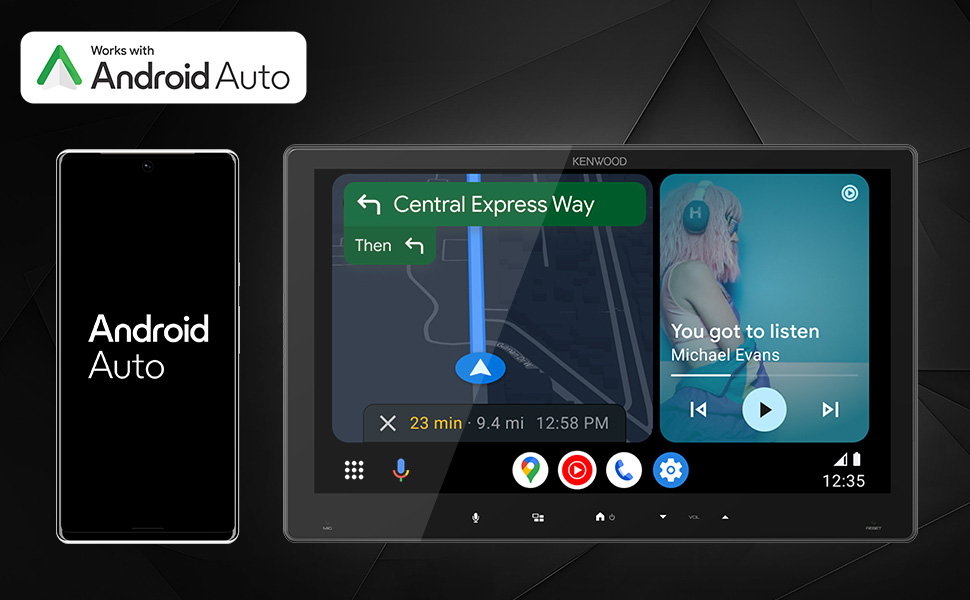

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.
*Selected mobile phones only

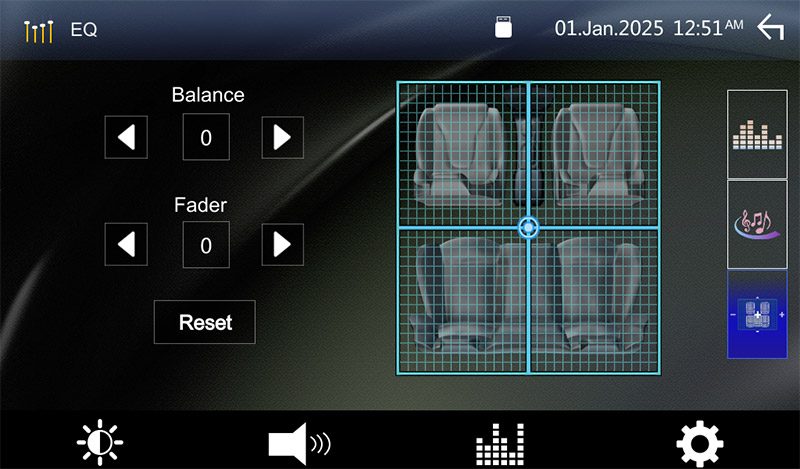

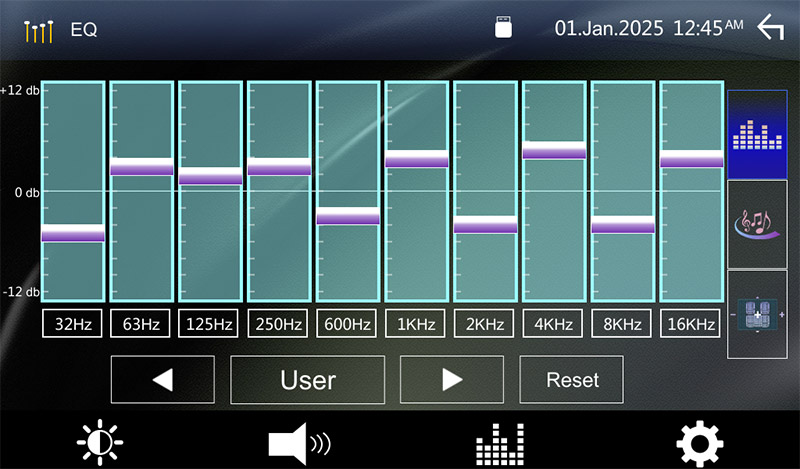

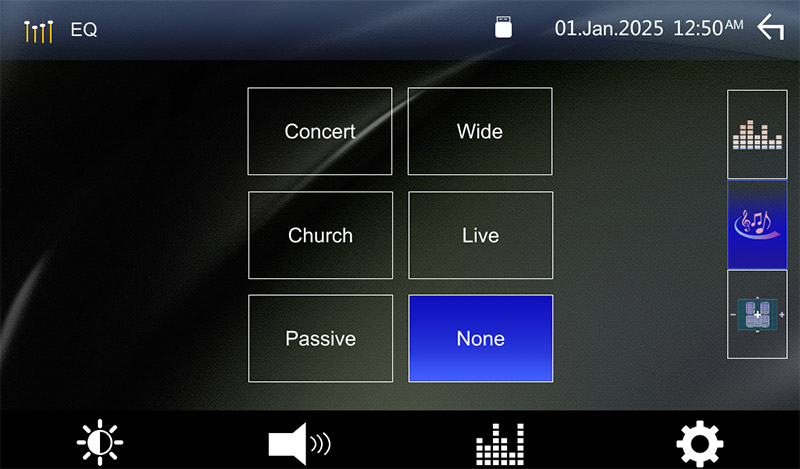

Use the graphic equalizer to tailor the sound quality to your unique tastes.

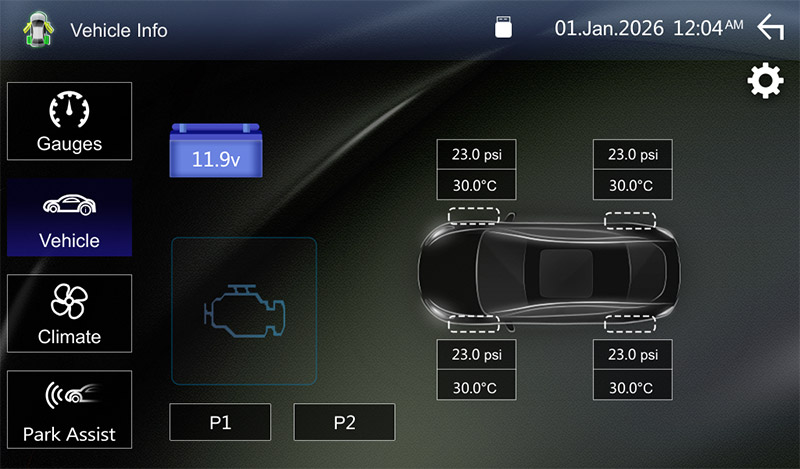

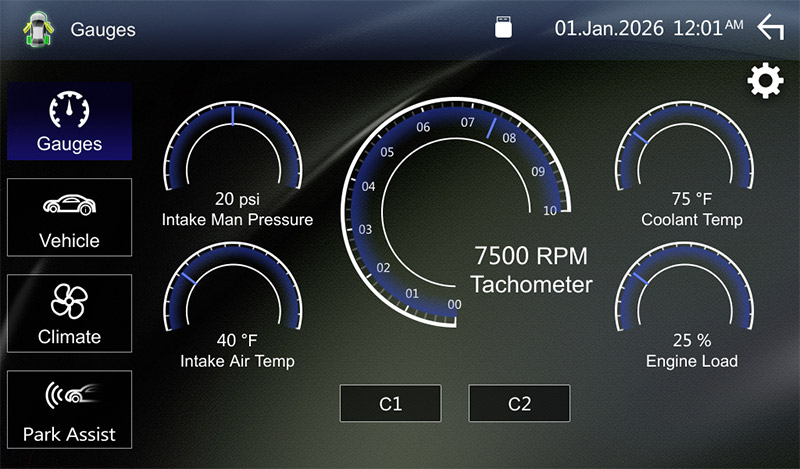

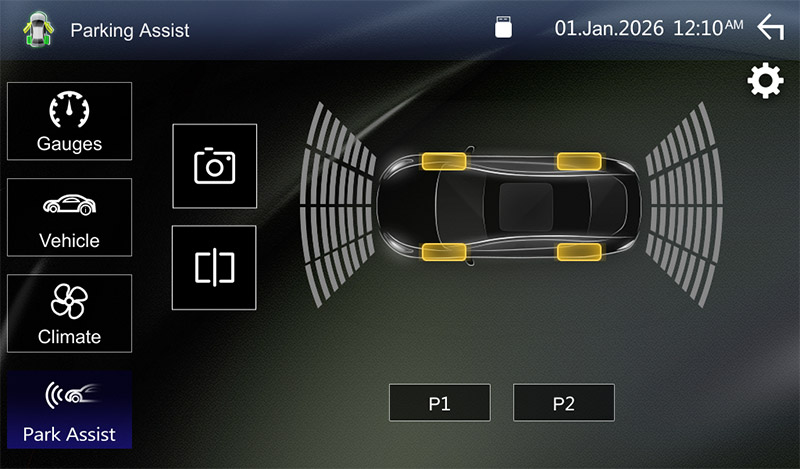

Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, these models feature expanded support when connected to the RR2.
*Available features vary by vehicle
Two camera inputs provide users the ability to add both a front and rear camera for enhanced driver safety and convenience. Built-in, adjustable parking guidelines further add to its effectiveness.

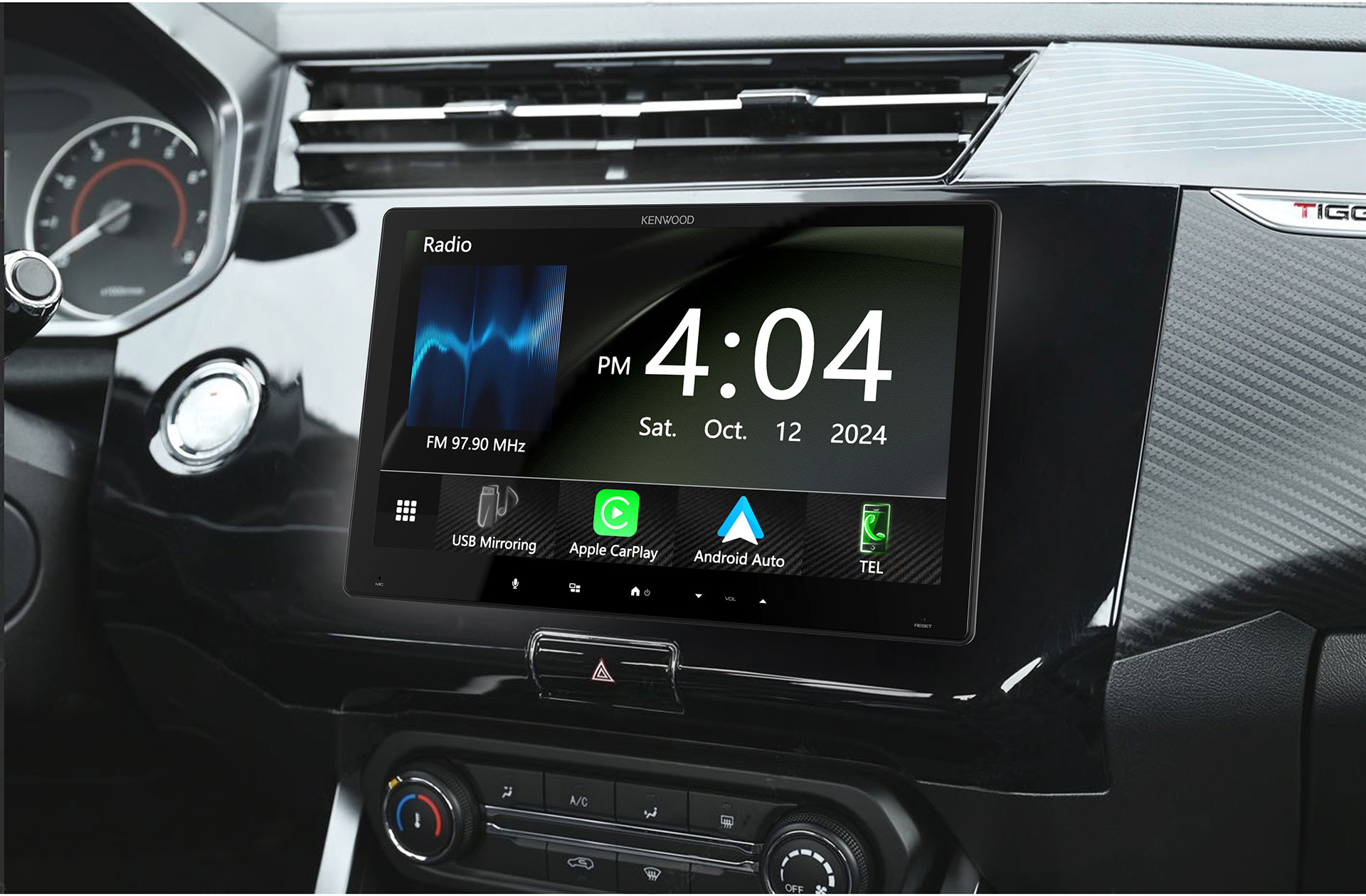

The receivers can be installed in most Japanese and Korean vehicles easily.
Click here to learn more

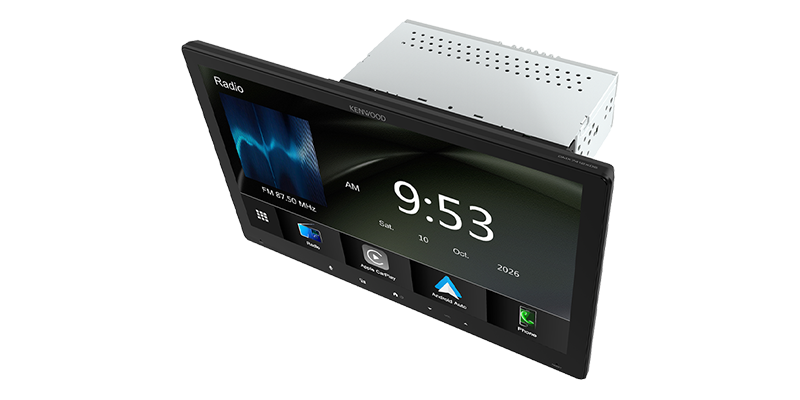

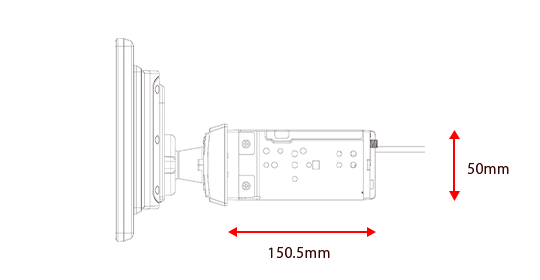

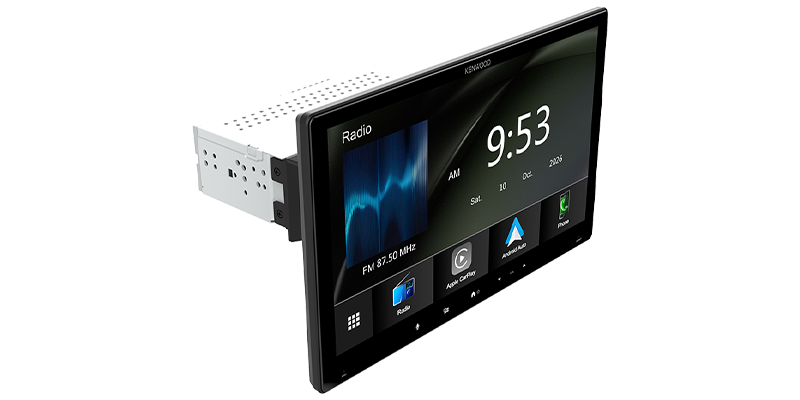

The reduced height of the chassis contributes to a weight reduction and facilitates easier installation.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
| Main Unit | Monitor Section |
Display Size | 11.6 Inches |
|---|---|---|---|
| W x H | 285.5 (W) x 179.3 (H) mm | ||
| Aspect Ration | 16:9 | ||
| Resolution | 1366 x 768 | ||
| Screen Type | TFT - LED active matrix | ||
| USB I/F Section |
Connector Type | Type-A | |
| USB Standard | USB2.0 High Speed | ||
| File System | FAT 32 | ||
| Charging | 1.5A | ||
| D/A Converter | 24 Bit | ||
| Audio Decoder | MP3 / AAC /FLAC (192kHz / 24bit) | ||
| Video Decoder | AVI / MKV | ||
| Supported USB Devise | MAX 32GB | ||
| Wi-Fi | Frequency Range | Dual Band ( 2.4GHz / 5GHz ) | |
| Only used in wirless connection for CarPlay / Android Auto | |||
| Bluetooth Section |
Technology | Bluetooth Ver5.2 + EDR | |
| Transmission Range | 33ft / 10m ( line of sight) | ||
| Bluetooth Profiles | A2DP, AVRCP, HFP, PBAP, HSP, HID, GATT, SPP | ||
| FM | Frequency Range | 87.5 ~ 108.0(MHz) | |
| (Frequency step) | 50kHz | ||
| RDS / RBDS | TA, AF | ||
| AM | Frequency Range | 531 ~ 1701(kHz) | |
| DAB | Frequency Range | 174 ~ 240MHz | |
| Video | Signal System | NTSC / PAL | |
| Audio | Maximum Power Output (Front&Rear) | 20 W RMS x 4 | |
| Pre-amp Output | 4V | ||
| EQ Boost | ±12dB | ||
| Preset EQ | Jazz, HipHop, Pop, Rock, R&B, Flat, Classic | ||
| Speaker Impedance (Ω) | 4 - 8 Ohms | ||
| General | Chassis | Dimensions W x H x D | 178mm x 50mm x 150.5mm |
