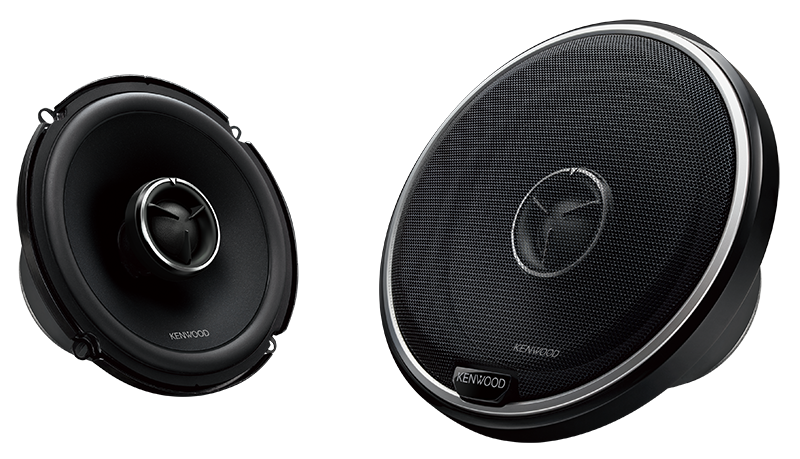

KFC-X174117cm Round Coaxial Speaker

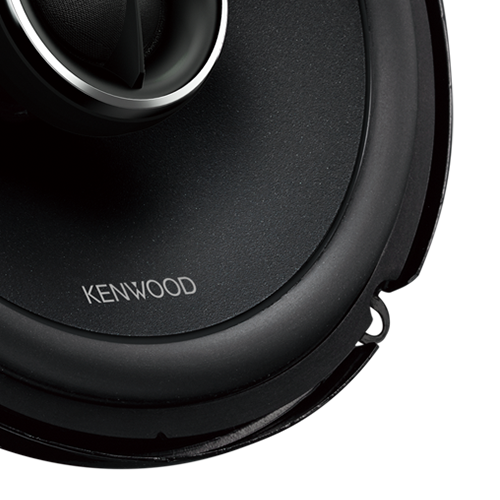

Adjusting the composition of the materials used in the woofer cone, the rigidity of the diaphragm increases and realized the accurate sound signals.

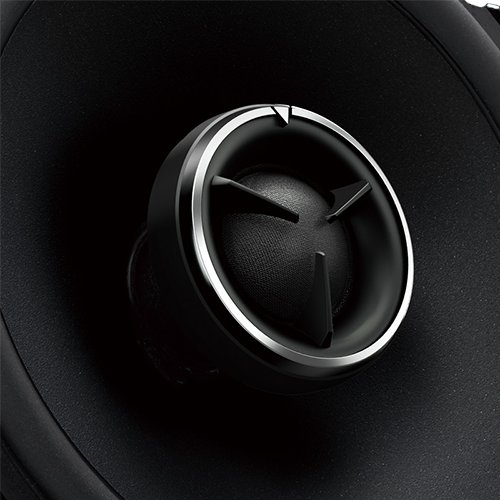

The 25mm Tweeter widens the sound field and controls interference, providing a rich vocal sound in front through the 17cm speaker.

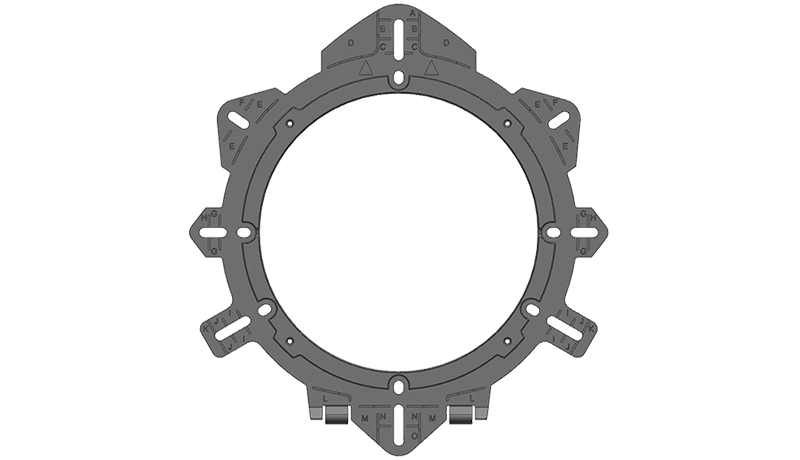

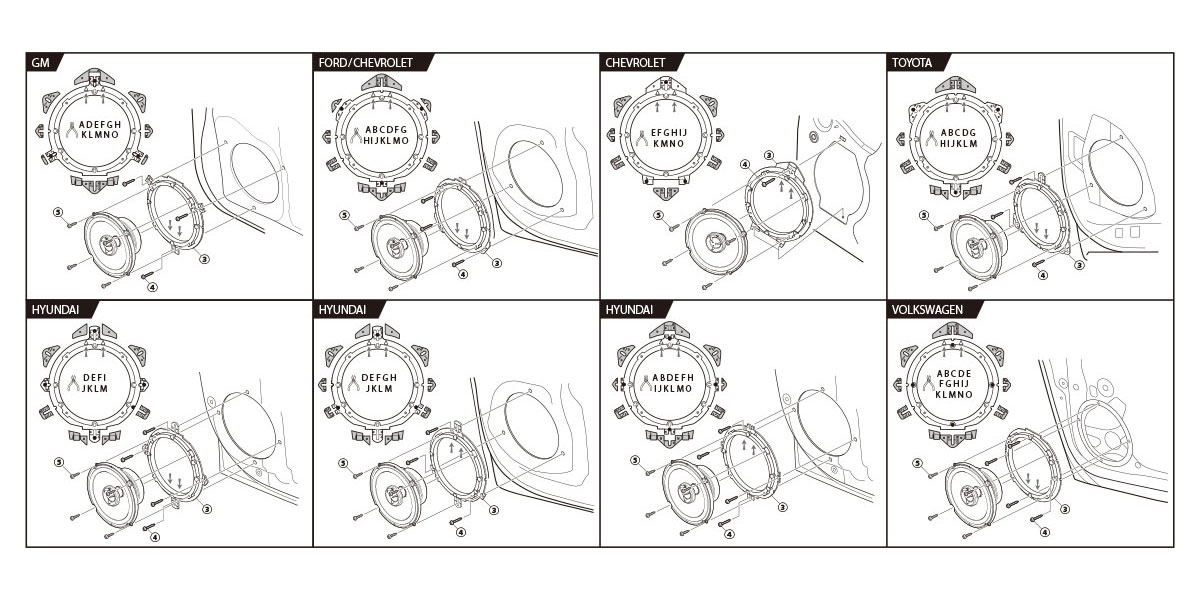

Multi-bracket is included to make installation easier in a variety of vehicle types.
| Peak Power | 240W |
|---|---|
| RMS Power | 80W |
| Impedance | 4Ω |
| Sensitivity | 87 dB/ W at 1m |
| Frequency Response | 67Hz - 21kHz |
| Woofer | |
| Woofer Size | 165mm |
| Woofer Diaphragm | Injection PP cone |
| Tweeter | |
| Tweeter Size | 25mm |
| Tweeter Diaphragm | Soft Dome |
| Dimensions (without grill) | |
| Tweeter Height | 19mm |
| Mounting Depth | 56mm |
| ELECTRICAL | SYSTEM | ||
|---|---|---|---|
| PEAK INPUT POWER | 240 W | ||
| CTA Spec (CTA-2031 Compliant) | |||
| RMS POWER | 80 Watts RMS | ||
| IMPEDANCE | 4 Ω | ||
| SENSITIVITY | 87 dB/ W at 1 m | ||
| FREQUENCY RESPONSE | 67 Hz~21,000 Hz | ||
| COSMETIC | WOOFER | ||
| Diaphragm | P.P. Cone | ||
| Size | Oversized 165 mm | ||
| Surround | Rubber | ||
| Basket | Steel | ||
| Magnet | Ferrite | ||
| TWEETER | |||
| Diaphragm | Soft Dome | ||
| Size | 25 mm | ||
| Magnet | Nd | ||

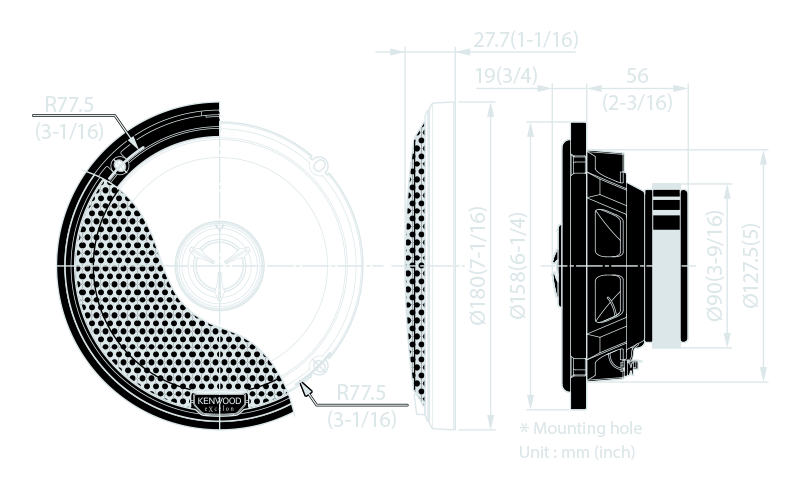

| DIMENSION | with Grille | ||
| Width | 180.0 mm | ||
| Height | 180.0 mm | ||
| Depth | 84.2 mm | ||
| without Grille | |||
| Width | 158.0 mm | ||
| Height | 158.0 mm | ||
| Depth | 75 mm | ||
| Cut-out Diameter | 127.5 mm | ||
| Tweeter Height | 19 mm | ||
| Mounting Depth | 56.0 mm | ||
| ACCESSORY | GRILLE | 2 pcs | |
| BRACKET | 2 pcs | ||
| Multi Bracket | |||
| SCREW SETS | |||
| Binding Head Tapping Screw | Φ4 x 25 mm | 8 pcs | |
| Binding Head Tapping Screw | Φ4 x 12 mm | 8 pcs | |
| Speed Nut | Φ4 | 8 pcs | |
| Speaker Cord | 0.3 m | 1 set | |
| Adhesive Tape | ○ | 1 set | |
| Instruction Manual with Template | ○ | 1 pc | |
| Warranty Card | ○ | 1 pc | |
KFC-X1741
